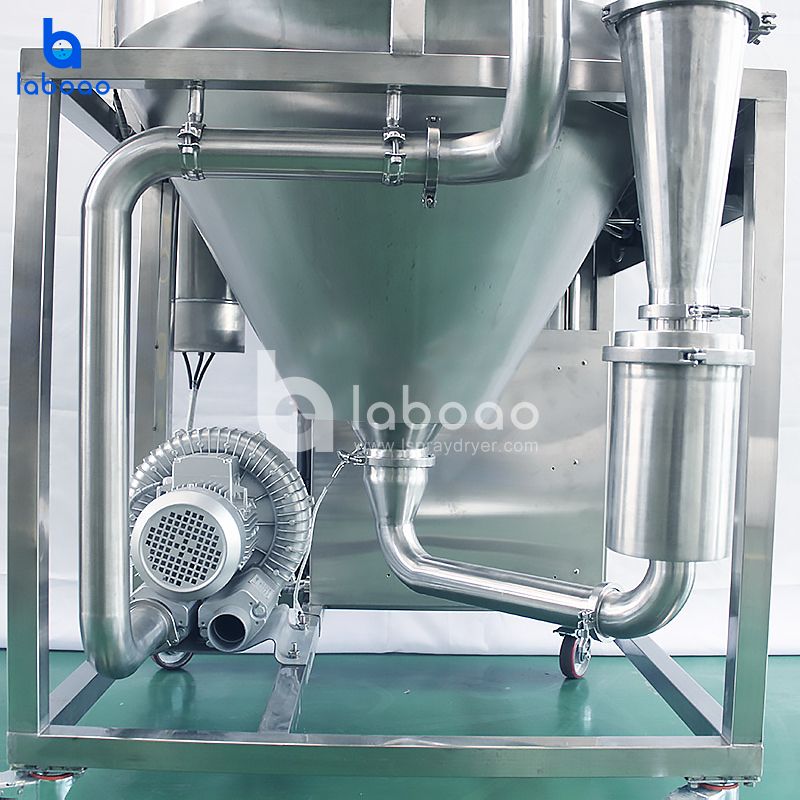

The LZL-5 granulation spray dryer adopts double air-supply liquid granulation nozzles, which directly turns uniform spherical droplets into particles through uniform heat.
It is suitable for experiments and small-scale production, with good precision and uniform particles. The core accessories are all imported equipment to ensure the stability and safety of the product.
1. Atomizing head, Qiaofeng dual air-supply liquid granulation nozzle
2. Atomization method: from bottom to top, increasing the time of fog droplets staying in the air
3. The particle size range is from 5 microns to 250 microns, and the granulation particle size is adjustable
4. The airflow adjustment of the inner ring and outer ring can obtain satisfactory particle size requirements.
5. The cap design inside the tower can trap the target particles more effectively.
Model | LZL-5 |
Evaporation | 5Kg/h |
Minimum feed amount | 80ml |
Drying chamber diameter (mm) | ￠800 |
Drying tower height (mm) | ￠1000 |
Atomization system | Dual gas liquid delivery |
Electronic control system | Special for granulation atomization system |
Maximum inlet air temperature | 260℃ |
Electronic control main accessories standard (including PLC, analog module, touch screen) (optional) | ☑Wecon control module (standard) |
Selection criteria for electric control auxiliary accessories (including contactors, etc.) (optional) | ☑Chint (Standard) |
Parts in contact with the material (optional) | ☑SUS304(Standard) |
Exhaust gas reuse, saving energy by more than 30% (optional) | ☑Not assembled (standard) |
Atomizing nozzle (with or without diamond coating) | SUS304(Standard) |
heater capacity | 25Kw |
Blower [power (kw), air volume (m³/min)] | - |
Induced fan [power (kw), air volume (m³/h)] | [1.5，250] |
Compressor [power (kw), air volume (L /min)] | [0.58，108] |
Electricity (installed capacity) | 30Kw |
Insulation Materials | 50mm glass fiber insulation cotton |
Pulse bag filter (optional) | PTFE coating material |
4 pcs | |
Dimensions (mm) (L×W×H) (reference) | 1600×1400×1800 |
Installation weight (reference) | 500Kg |
Power supply | 380V |
